Project Description
Intuitive. Automated. Scalable.
A powerful, video analytics driven surveillance system for standalone or multi-site (enterprise) installations

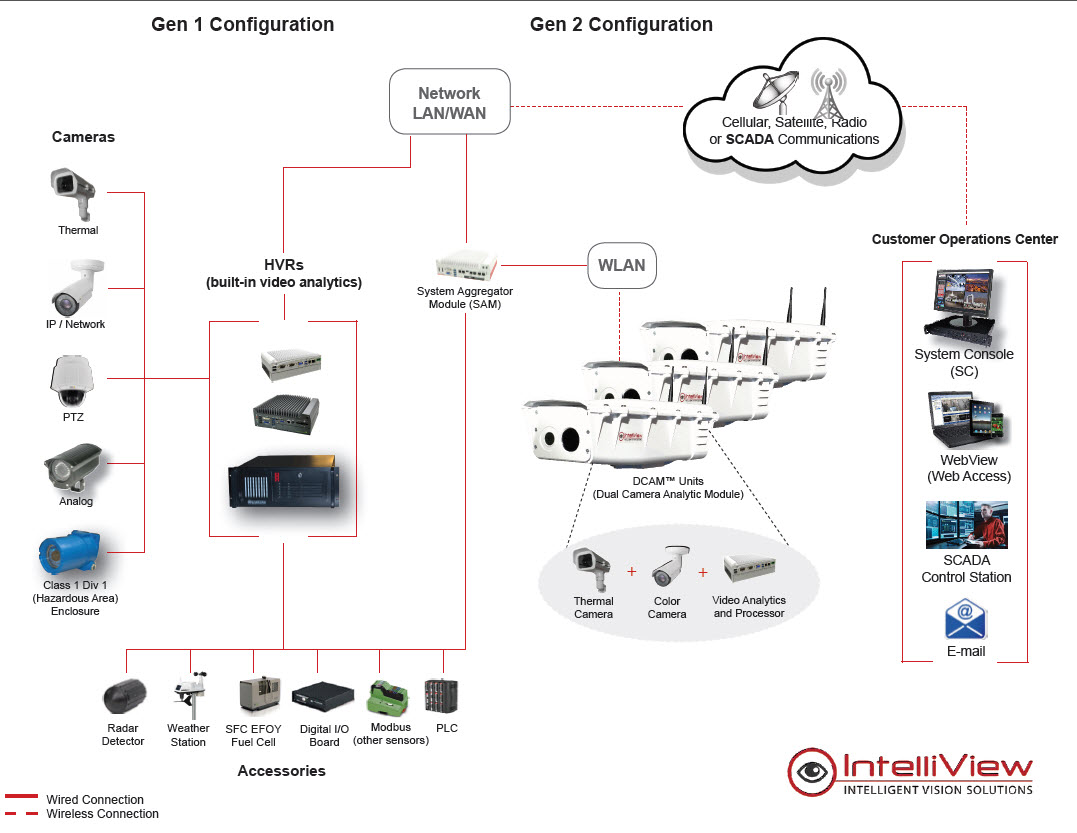

The IntelliView real-time detection system is an end-to end solution consisting of cameras, smart video recorders with image processing and video analyzing software, the monitoring System Console, and optional accessories.
By combining our solid expertise in video analytics with the latest surveillance technologies, we can put together the right hardware/software solution to help you monitor assets or processes to improve efficiency, safety, and security.
Benefits:
- Real-time knowledge of incidents
- Quicker verification and response
- Lesser costly site visits with remote access & control
- Reduced manpower and operator dependence
- Low maintenance, low operating costs
- Flexibility to unique requirements
- Safe to the environment
Features:
- Analytics applied to live video (replaces human watch)
- Alarms notifications with image/video
- Low false alarms rate
- Advanced algorithms (background learning, environmental filter, and image stabilization)
- User control of settings and rules
- Analytics calibration by in-house development team
- Scalable hardware and software
- Minimal bandwidth consumption
- Extreme weather or hazardous environment enclosures
Fixed – suitable for facilities that have ample power and network amenities.

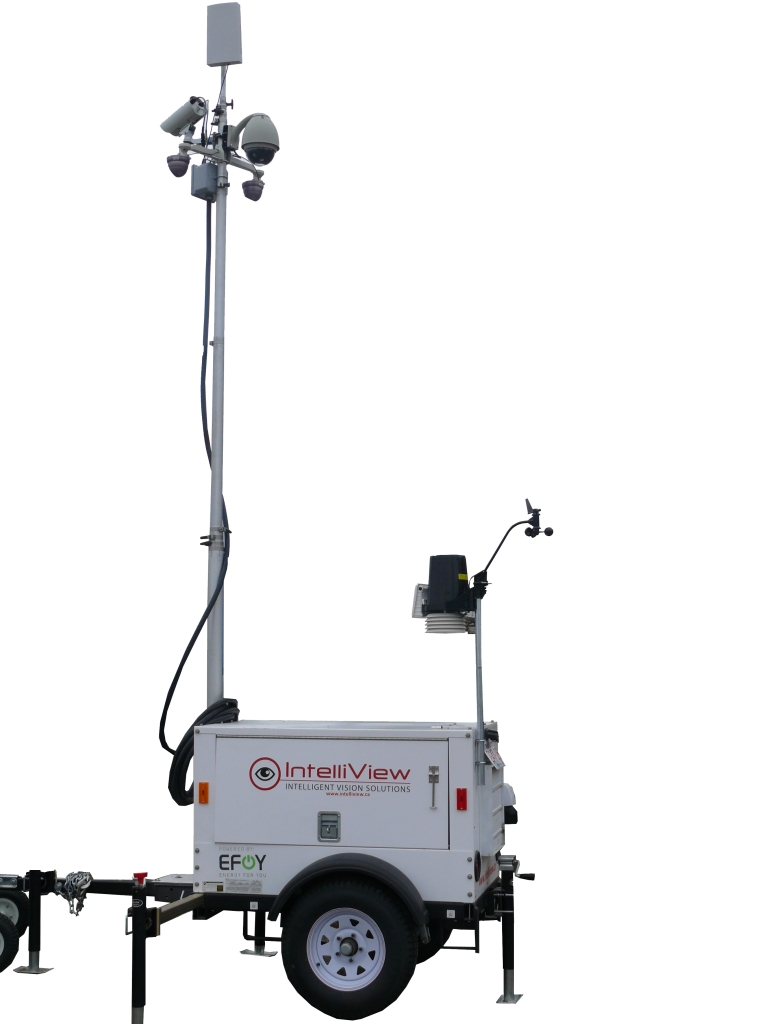

IntelliView Surveillance Trailer – addresses the unique challenges of semi-manned and unmanned remote sites, such as geographic accessibility, inhospitable weather, lack of manpower, non-existent/inadequate utilities. It features:
- 4+ camera capacity
- Eco-friendly power options (EFOY fuel cells with solar and battery component)
- Long-range modem
- Communications options and interfaces (wireless, satellite, radio, SCADA)
- DIO device integration
- Quick setup and easy operation
1. Live Event
Data is captured using imaging and non-imaging sensors.
2. Live Video Analysis and Verification
Live video is analyzed onsite using advanced algorithms (patented, patent pending, proprietary, and industry standard) contained in our HVR or IntelliView DCAM™ (launched Q1 2016).
3. Alarm Activation and Notification with Video
When an event is qualified as an alarm event (based on user-condition/rules), the system will send notifications with photo/video to monitoring/control centers and/or by email to individual personnel. It is also possible to configure rules to activate/enable or deactivate/disable devices automatically.
Pipeline Fluid Leak Identification (Oil, Brine, Water, Acid, other Chemicals) from valves
Industrial Site, Facility and Plant Security (Oil, Gas, Chemical, Utility, Power/Sub Stations, Mining, Construction)
Process Control
Environmental Protection
Weather Observation
Wildlife Watch
Access Control
DIO Device Activation and Control
Cameras

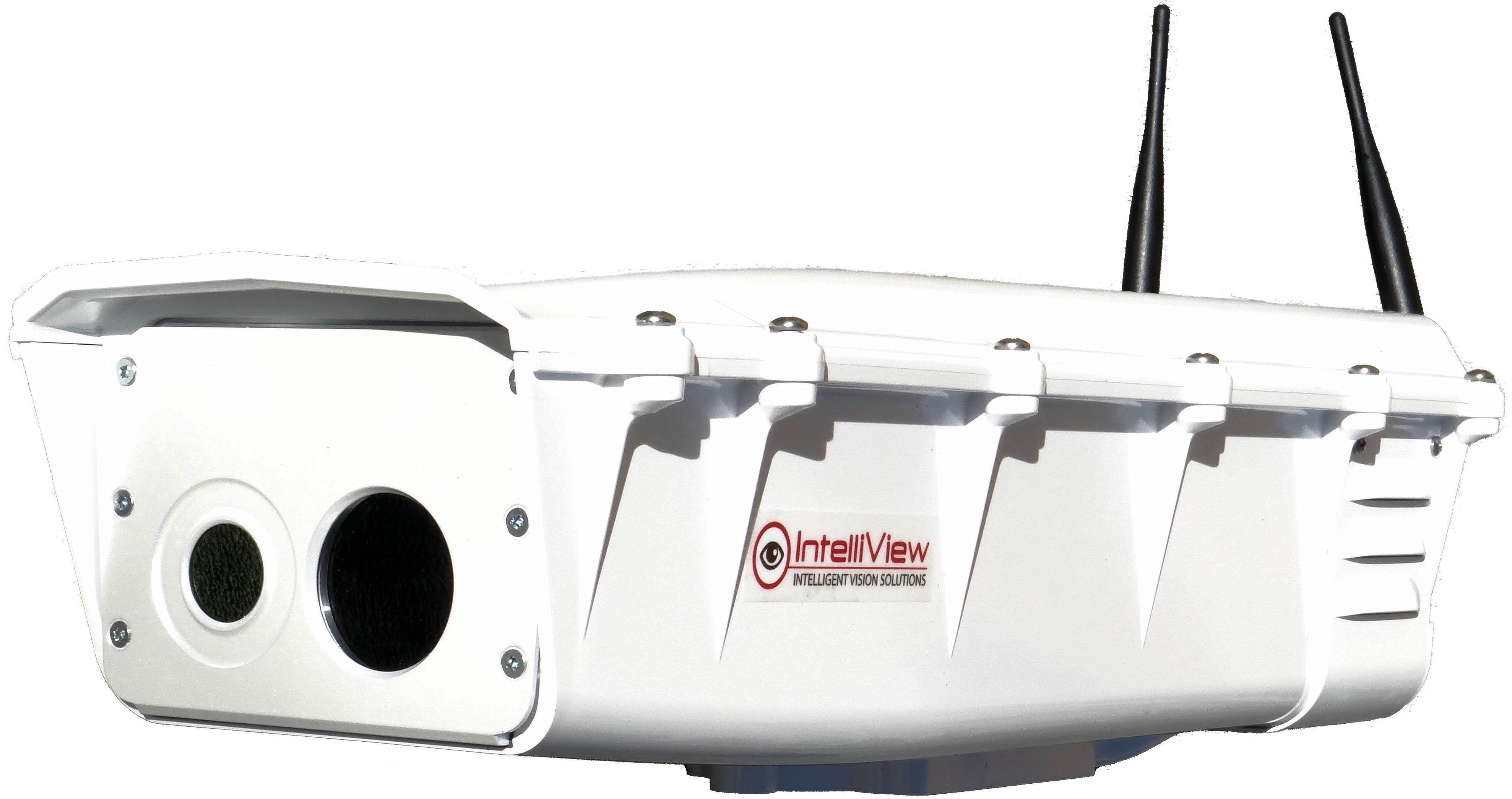

IntelliView DCAM™ (Dual Camera Analytic Module)
(Launched in Q1 of 2016)IntelliView DCAM™
Launched in Q1 of 2016
The DCAM™ is a dual sensor smart camera (thermal and color) with built-in leak analytics and auto climate control. Alarm notifications with image/video evidence are sent wirelessly, reducing installation costs and hardware footprint.

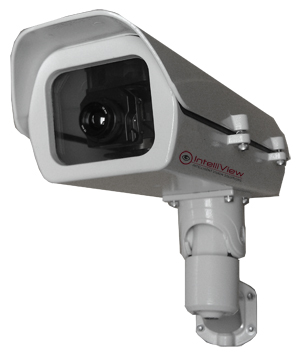

Thermal Camera (Extreme Weather)
(IVT-XWTH)IVT Thermal Camera (Extreme Weather)
Outdoor/weatherproof, uncooled microbolometer (7.5~13.5 μm), day/night, 324 x 256 resolution, lens focal length options, Auto Gain Control (AGC), -40°C ~+80°C (-40 °F ~176 °F) operating temperature, IP68
Thermal Camera + AREA
(IVT-XWTH-A)Thermal Camera (Extreme Weather) + AREA
Outdoor/weatherproof infrared camera, uncooled microbolometer (7.5~13.5 μm), day/night, 324 x 256 resolution, lens focal length options, advanced radiometric electronic access (AREA) for core data communication and camera control, Auto Gain Control (AGC), ‐ 40°C to +80°C (-40 °F ~176 °F) operating temperature, IP68 rated.

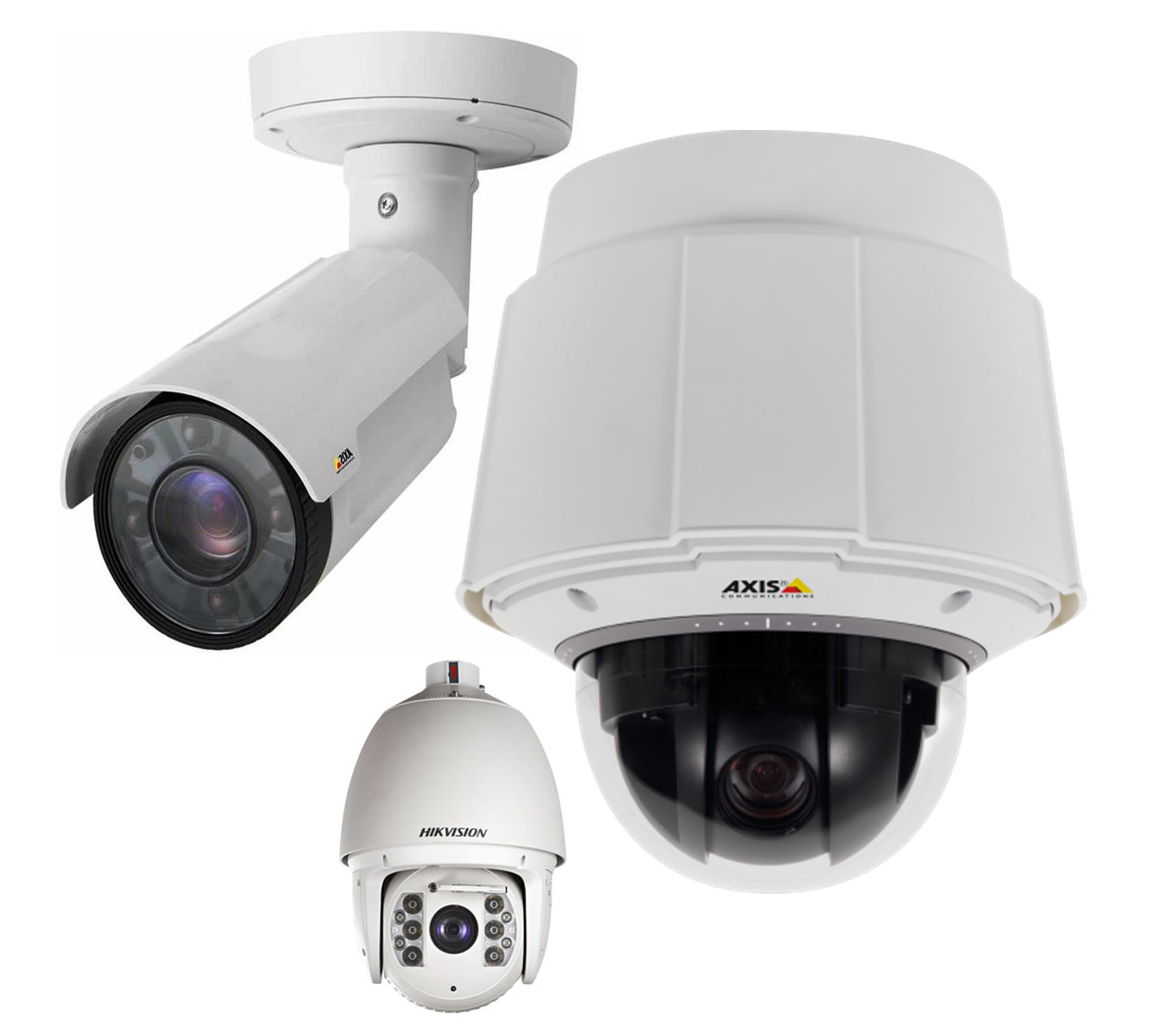

Branded Cameras
Axis, Hikvision, Vivotek & moreBranded Cameras
We offer high quality cameras from a number of leading manufacturers, including Axis, Hikvision, and Vivotek. Features range from HD resolution and wide field of view, to night vision and PTZ (pan-tilt-zoom).
Contact IntelliView for more information on these cameras as well as our ruggedized/explosion proof enclosures.

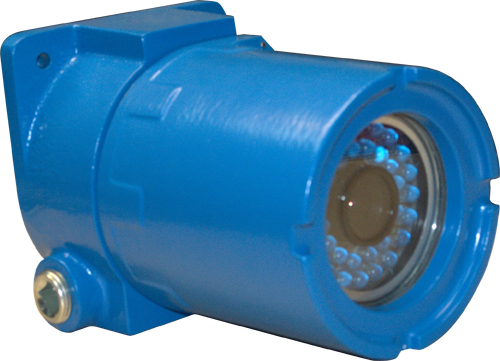

Explosion Proof Camera
IVT-C1D1IVT Explosion Proof Camera
Outdoor/weatherproof IP color camera, PTZ, day/night, 1.3 MP, HD720p, 2.8 ~12mm @F1.4, motorized VF lens, IR with up to 30m range, Electronic Image Stabilization (EIS), heater, defogger, -30°C ~ 60°C (-22°F ~ 140°F) or -H: -40°C ~ 60°C (-40°F ~ 140°F) with heater operating temperature, IP66 rated.Contact IntelliView for more.
Intelligent Video Recorders (HVR)
4-Ch HVR
Hybrid Video Recorder
8-Ch HVR
Hybrid Video Recorder8-Ch HVR
Supports network (IP) cameras and analog cameras.
Compatible with legacy CCTV systems. Take advantage of the HD and wireless capabilities of IP technology.
16-Ch HVR
Rackmount16-Ch HVR
Supports network (IP) cameras and analog cameras.
Compatible with legacy CCTV systems. Take advantage of the HD and wireless capabilities of IP technology.
Remote Monitoring Tools

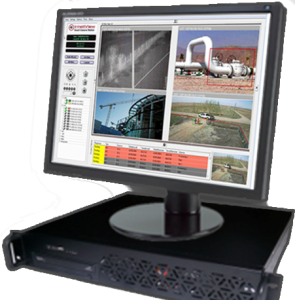

IntelliView SC
IntelliView System ConsoleIntelluView System Console
Powerful. Versatile, Intuitive. Scalable.
Features: 1000+ channel capacity, up to 16 feeds per screen, alarms and events list, alarm rule management, PTZ camera controls, video playback, and HVR settings.

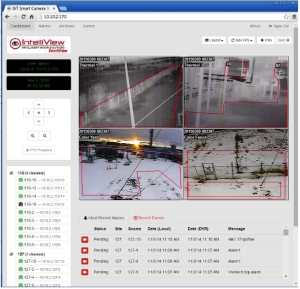

WebView-SC
Web AccessWebView-SC
(included with the IntelliView SC)
Anytime, anywhere online access via desktop computers, laptops, and selected mobile devices.
Features: live video feeds (from 1000+ cameras), alarm and even lists, alarm and archive video playback, alarm rule settings, camera management, and PTZ camera controls.
Contact IntelliView for more.

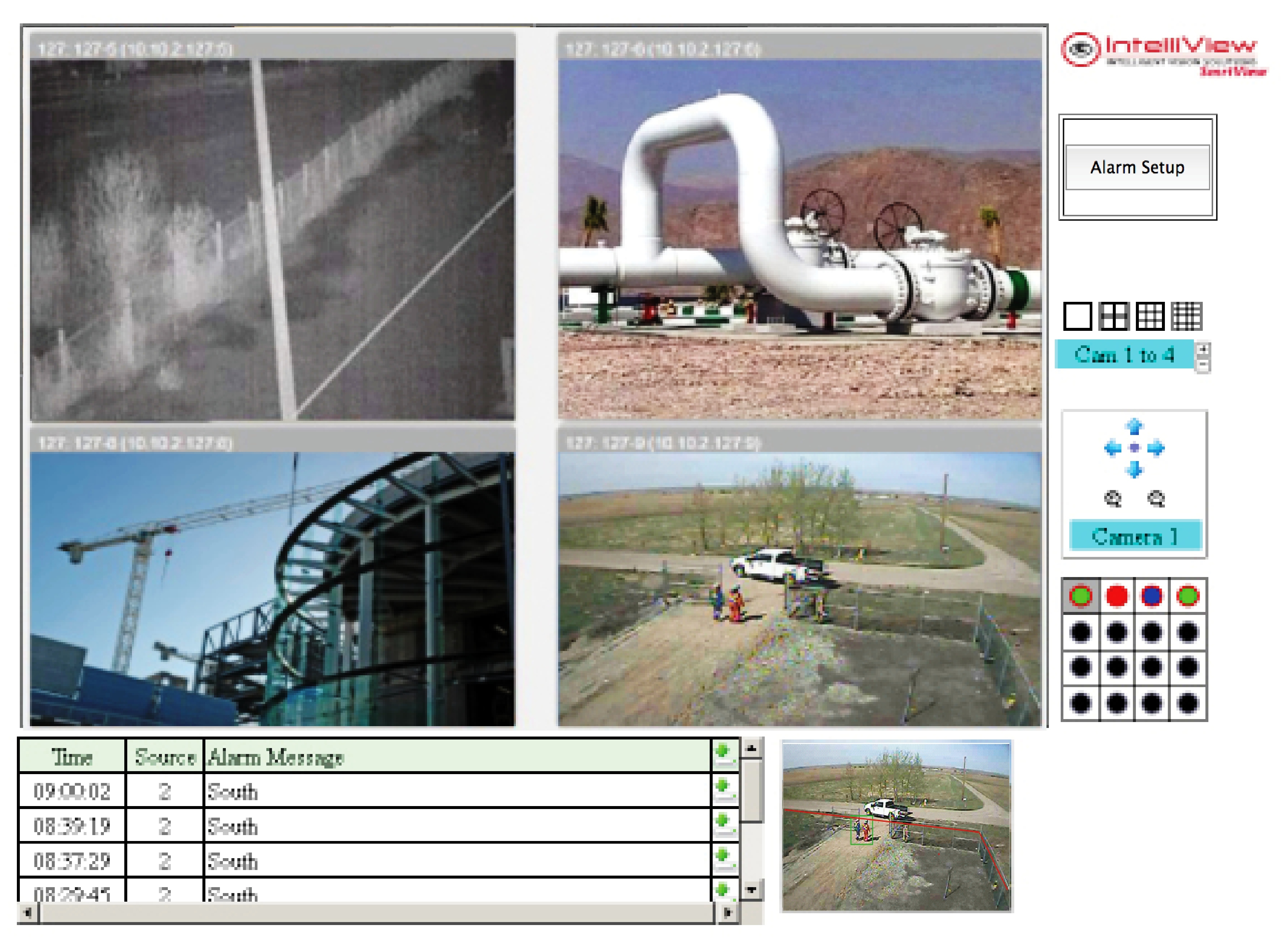

WebView-HVR
Web AccessWebView-HVR
(included with all HVRs)
Anytime, anywhere online access via desktop computers, laptops, and selected mobile devices.
Features: live video feeds, alarms list, alarm media, alarm rule settings, and camera controls.
Contact IntelliView for more.
